Packaging

---

The ability to cut knife-edges on devices allows new packaging approaches.

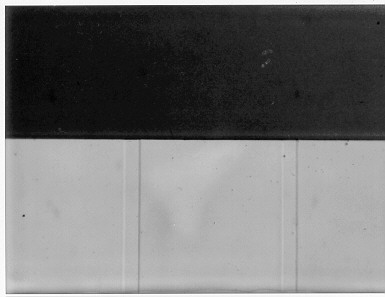

A cut knife-edge; two Ti-indiffused waveguides are visible on the surface.	A PM fiber end after cutting.	A  cut knife-edge with photolithographically defined fiducial marks.

  A 3-element Mach-Zehnder modulator array that uses vertically-inserted microstrip lines for rf contact.

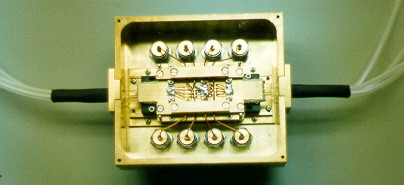

A packaged 4-element traveling-wave phase modulator array with rf contact assembly removed.	A packaged 4-element traveling-wave phase modulator array with rf contact assembly in place.
